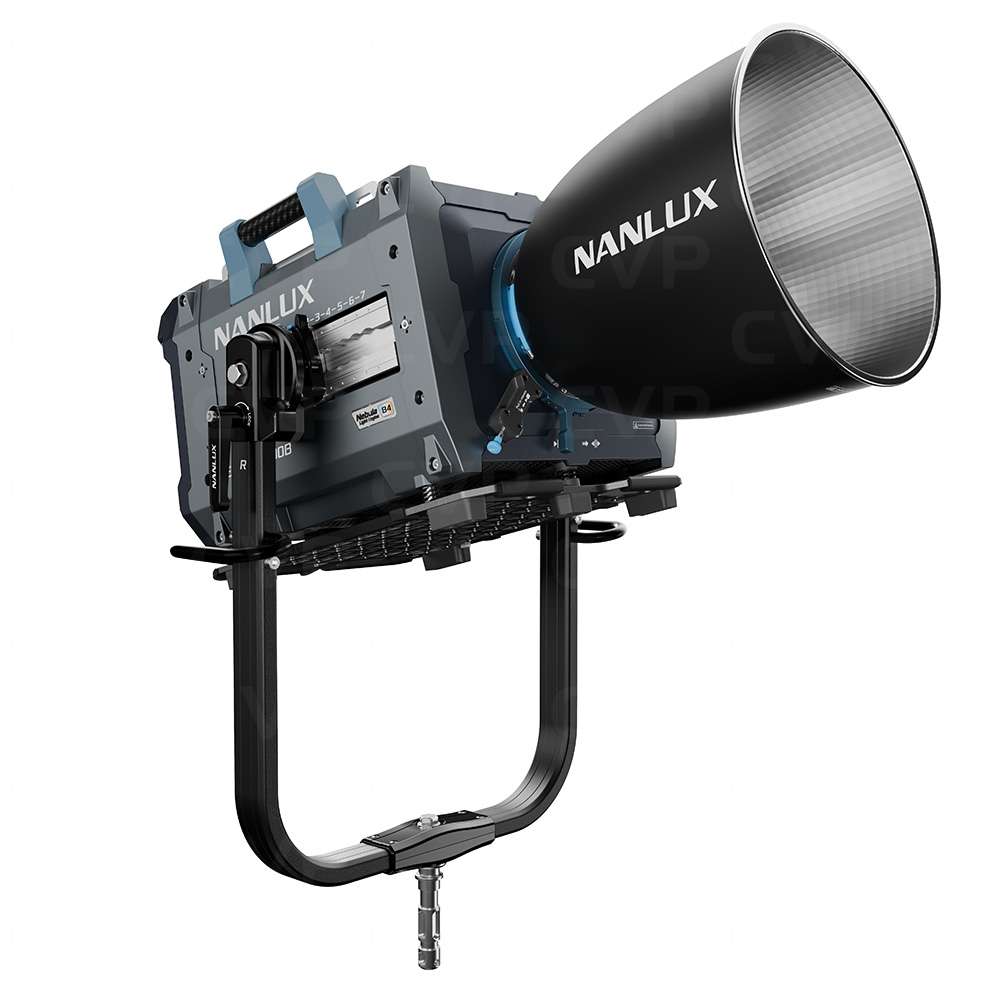

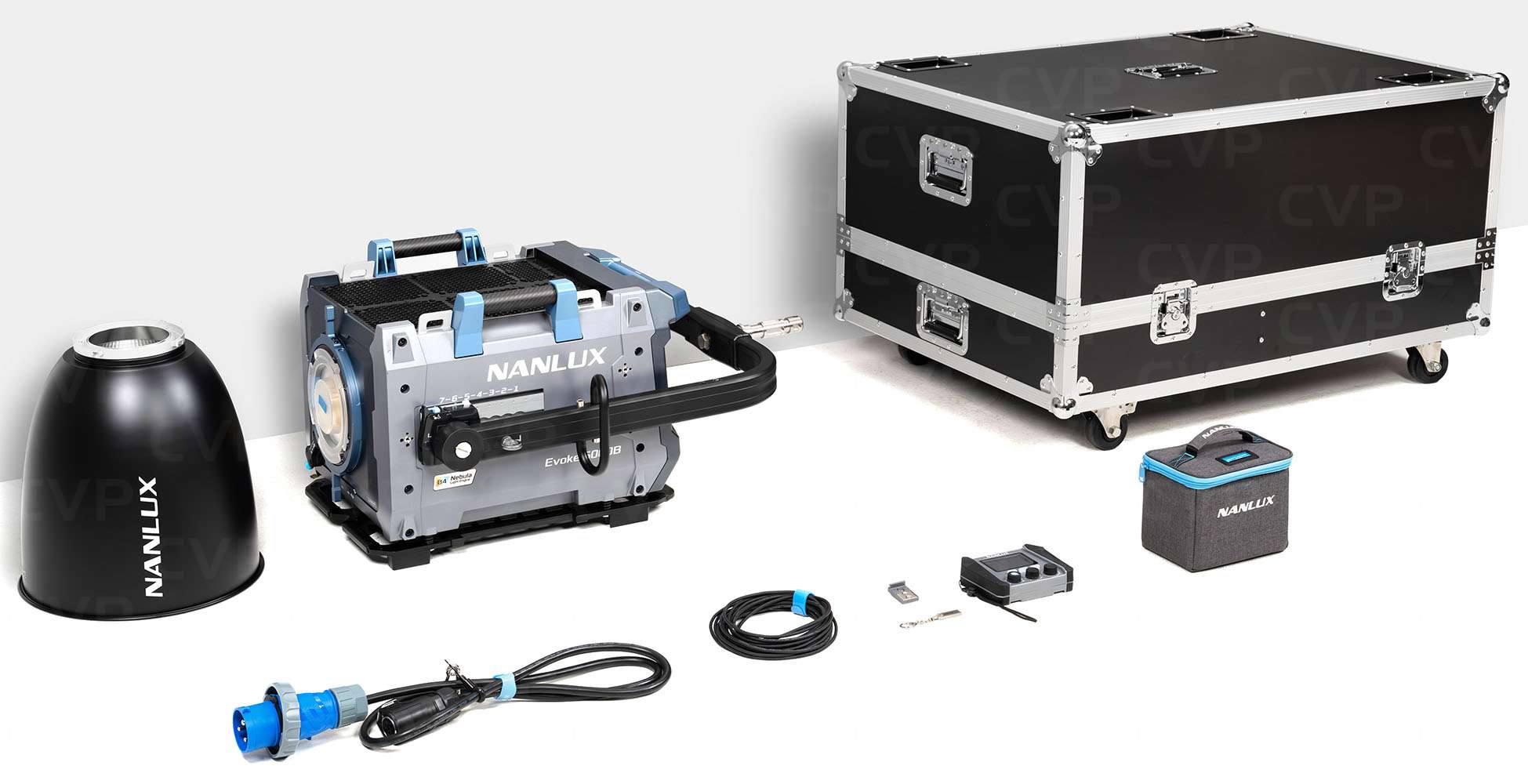

Nanlux Evoke 5000B Flight Case Kit

The World’s First 5000W Stormproof LED Bi-Colour Spotlight with Green/Magenta Adjustment.

The Nanlux Evoke 5000B integrates an impressive output with 5000W power draw, a colour temperature range of 2700K-6500K, ±80 Green/Magenta adjustment, excellent light quality, an IP66 rating, and the self-developed Nebula B4 Light Engine, all in one fixture. It also supports a variety of control methods, making it a cutting-edge solution for professional production. This groundbreaking innovation highlights Nanlux’s ongoing commitment and advancements in LED lighting and marks a milestone in the transition of motion picture lighting to the LED era.

Innovative Nebula B4 Light Engine Optimizing White Light Efficiency and Functionality

Based on considerations of high light efficiency and functionality, Nanlux developed the innovative Nebula B4 Light Engine, which combines 4 types of white light chips, providing Green/Magenta adjustment capability across the entire colour temperature range on a bi-colour fixture. Compared to bi-colour lighting produced by full-colour engines, the Nebula B4 Light Engine outperforms them by 30%in white light emitting efficiency from the same power input.

All-In-One Design, Compact, Weatherproof

Nanlux is always committed to an efficiency-oriented vision in product design, aiming for high efficiency and simple operation on set. The Evoke 5000B integrates the lamp head, control unit and power supply into one fixture, significantly reducing both the total weight and size compared to a solution with separate units. With its all-in-one lamp and just one cable, fixture management is simpler and more organized, improving efficiency for both on-set and transportation. To reduce weight and increase durability, the Evoke 5000B is constructed using high-strength magnesium alloy. It weighs only 46kg/101lb (with yoke), a remarkably light weight for the output. The Evoke 5000B is constructed with an IP66-rated housing, enabling it to withstand extreme weather conditions and allowing production to continue unaffects in harsh conditions.

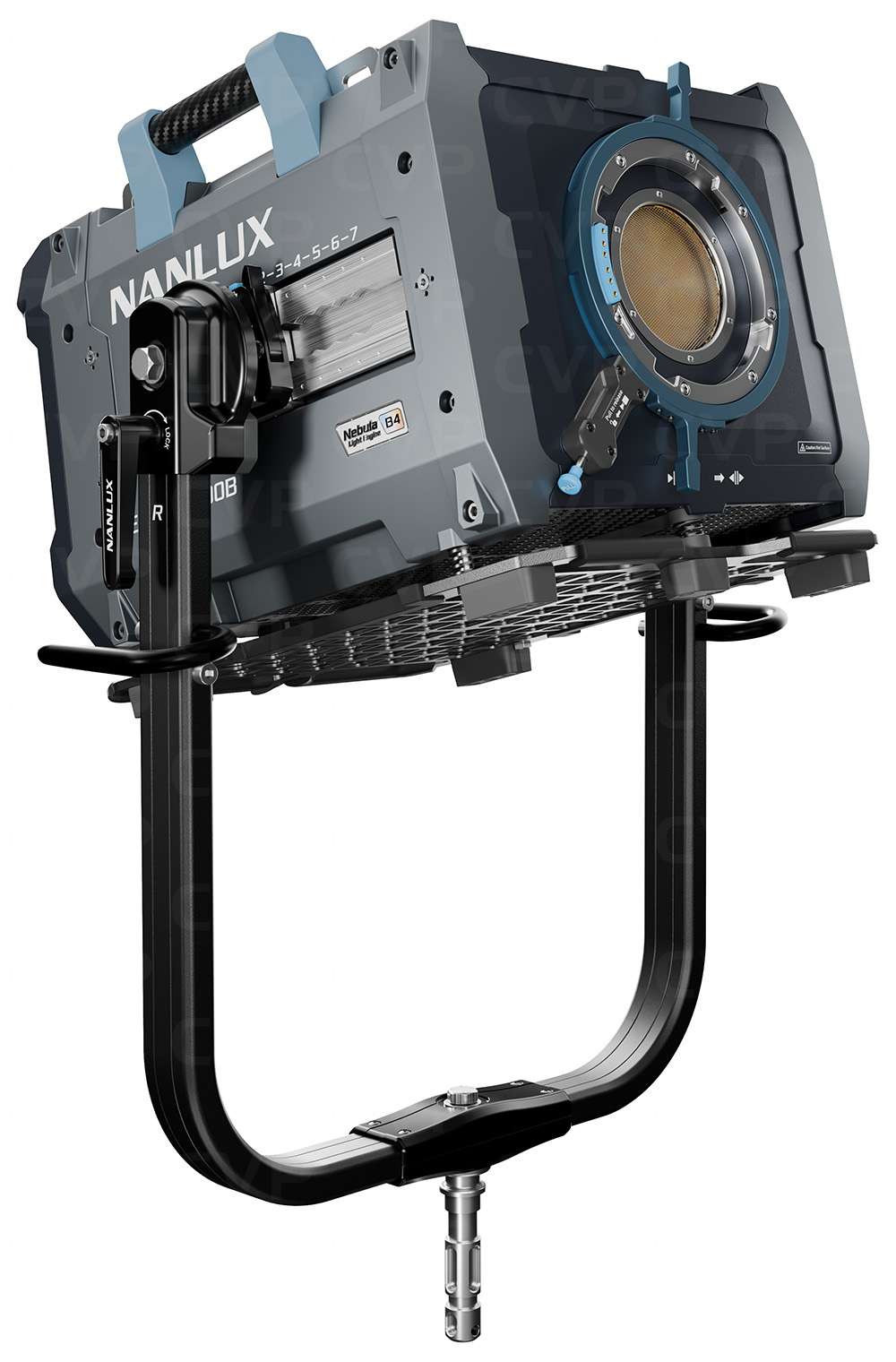

Yoke with Disc Brake

The yoke of Evoke 5000B is designed with disc brake, providing more grip strength that prevents the fixture from accidentally tilting once the angle has been fixed. This ensures precise positioning and on-set safety. There is an angle display on the yoke, ideal for aligning the angles when multiple fixtures are working as a group.

Balance Adjusting Rail

The two sides of the fixture is built with balance adjusting rails, enabling flexible adjustment of the balance position of the head, ensuring that the fixture remains neutral in terms of center of gravity when different accessories mounted on.

Skid

The Evoke 5000B comes with a skid, which brings general-purpose advantages and conveniences:

• Preventing Wear: The skid elevates the light fixture, effectively preventing direct contact with the ground and wear on the fixture’s bottom.
• Enhancing Efficiency: It can embed into the two handles on the top of the fixture, allowing for stacking of multiple fixtures and improving transport efficiency.
• Shock Protection: Springs between the fixture and the skid effectively reduce the impact from drops and transport bumps, extending the fixture’s service life.
• Easy Operation: It has two handles at both the front and back, making it easy to grab when setting up the fixture or adjusting the tilt angle when the fixture is installed high.

Dual Security

The existing NL mount is added with the PosiTight system, providing dual security to ensure a tighter connection between the fixture and the accessory, resulting in more stable lighting performance.

Excellent Lighting Performance

The Evoke 5000B adopts a unique 95° beam angle, making it suitable for lighting large areas even without a modifier. With this beam angle and emitting area, the light quality and shadows closely mimic sunlight, making an ideal solution for simulating natural light.

Exceptional Dimming Control

The smooth dimming of LED lights, especially in controlling brightness from 0.0% to 0.1%, is essential for fade in/out lighting. The Evoke 5000B achieves fully linear dimming performance through newly developed hardware combined with optimized mixing algorithms.

The newly added High Speed Mode allows the Evoke 5000B to switch from PWM to DC, maintaining stable and consistent brightness during high-frame-rate shooting. Even at over 10,000 frames, it ensures smooth, flicker-free performance. Combined with its exceptionally high illuminance, the Evoke 5000B provides an excellent lighting solution for high-speed shooting.

Comprehensive Controls, Ideal for Sets

The Evoke 5000B is designed with built-in control, ensuring the timely response of control signals. A new wired controller is included with the fixture, which provides stable wired control when the fixture is rigged high. The availability of DMX/RDM, Art-Net/sACN, and LumenRadio CRMX control options allows the Evoke 5000B to operate smoothly in professional film and television production sets, enabling simultaneous control of multiple fixtures.

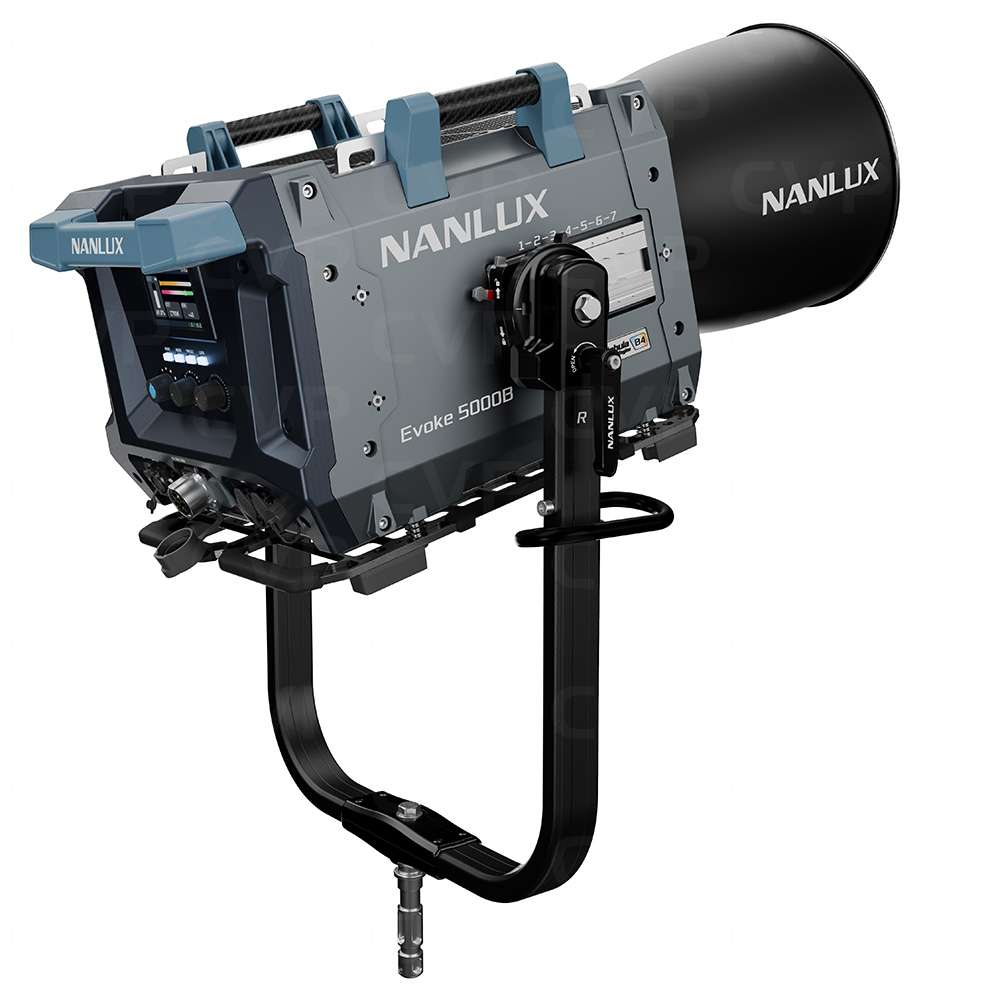

On-Board Control

The control panel is equipped with three knobs, four buttons and a 4.3-inch display screen for intuitive and quick control. The new-generation user interface provides users with a straightforward menu and user-friendly icons, allowing them to quickly locate the needed options and adjust parameters.

Wired Controller

The Evoke 5000B is equipped with an extension port, ensuring compatibility with the new IP66-rated wired controller (WC-EXT). This extension port enables connections between the fixture, the motorized yoke (TK-E-EVL), and other accessories, allowing for simultaneous control of all connected devices. Additionally, the fixture retains a wired control port, allowing compatibility with the existing wired controller (WC-LM6P-C1).

DMX/RDM Control

The fixture has two 5-pin XLR DMX in and out ports for DMX/RDM signal transmission, ensuring a stable connection for group control.

Art-Net/sACN

The fixture is equipped with two LAN ports, supporting Art-Net/sACN protocol control of Ethernet, ensuring stable signal transmission and enabling long-distance control of multiple fixtures.

LumenRadio CRMX

The Evoke 5000B has a built-in LumenRadio TimoTwo module, allowing it to connect to the CRMX control ecosystem and providing flexible and stable wireless DMX control.

NANLINK APP 2.0

The Evoke 5000B can be controlled by the Nanlink App 2.0 through its built-in Bluetooth module, making efficient flexible and simple wireless control possible.

Remote Controller

The Evoke 5000B can also be controlled by a remote controller (optional purchase) through its built-in 2.4G module for quick parameter adjustments.

Optimized Cooling Management

A fixture with breakthrough output will face a bigger challenge for heat dissipation. The Evoke 5000B is equipped with a newly designed cooling system, including optimized heat sinks and fan modules, which improve heat dissipation efficiency.

This cooling system includes Smart, Full Speed, Low Speed, Off, and Pause modes, allowing users to switch between them based on their needs. The Smart mode automatically adjust the fan speed according to the ambient temperature. In this mode, the noise level is only 44db(A), ensuring a silent recording environment.

Complete NL Mount Accessory Ecosystem

Thanks to the advanced technology, the light source module of the Evoke 5000B is the same size as that of the Evoke 2400B. Adopting the NL mount makes the Evoke 5000B compatible with most accessories for the Evoke 2400B. This means the Evoke 5000B can integrate into the existing accessory ecosystem and, when combined with accessories like the Fresnel, reflector, parallel beam reflector, and softbox, can produce a variety of lighting effects. This reduces the accessory investment required when purchasing a new light fixture.

Additionally, a new larger motorized Fresnel lens FL-45E, a motorized yoke, and a new wired controller tailored for the Evoke 5000B are also being introduced. Together with the existing Evoke series accessories, these meet the requirements for shaping light, supporting, transporting, and controlling, acting as an efficient and all-round lighting tool on set.
