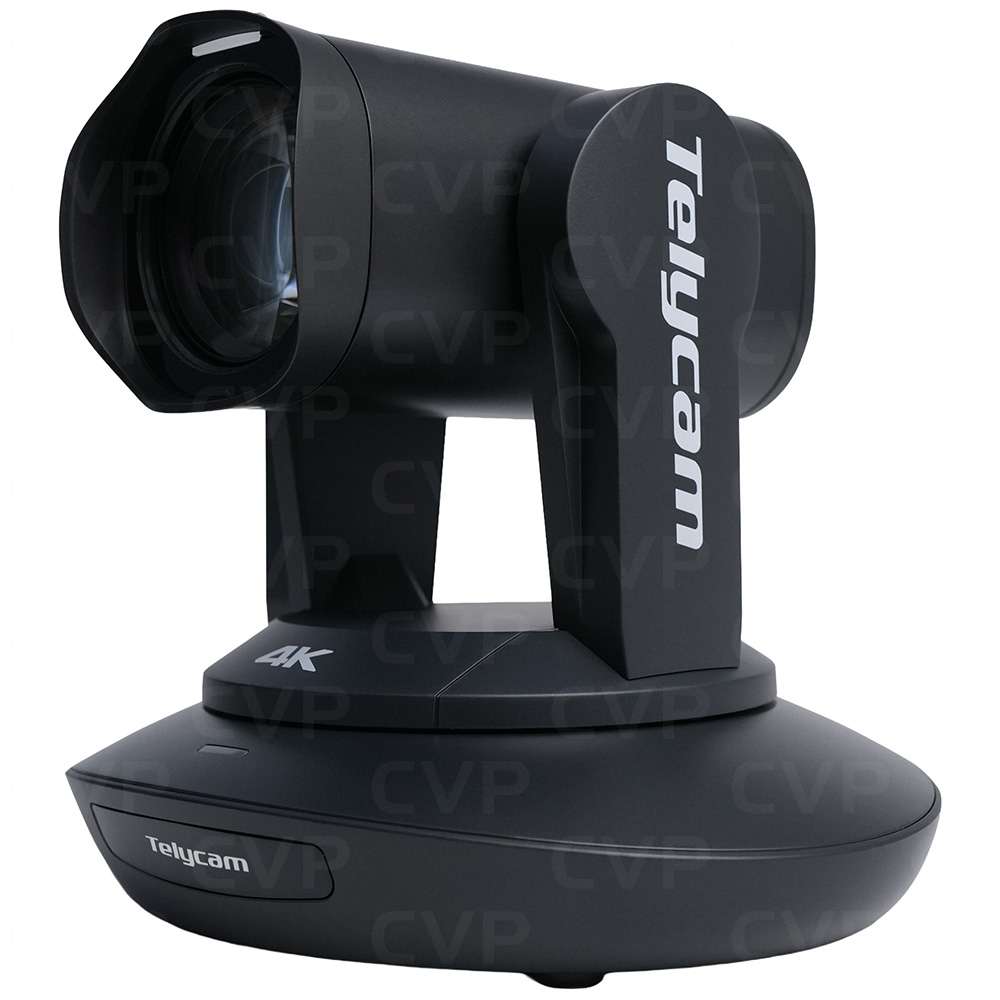

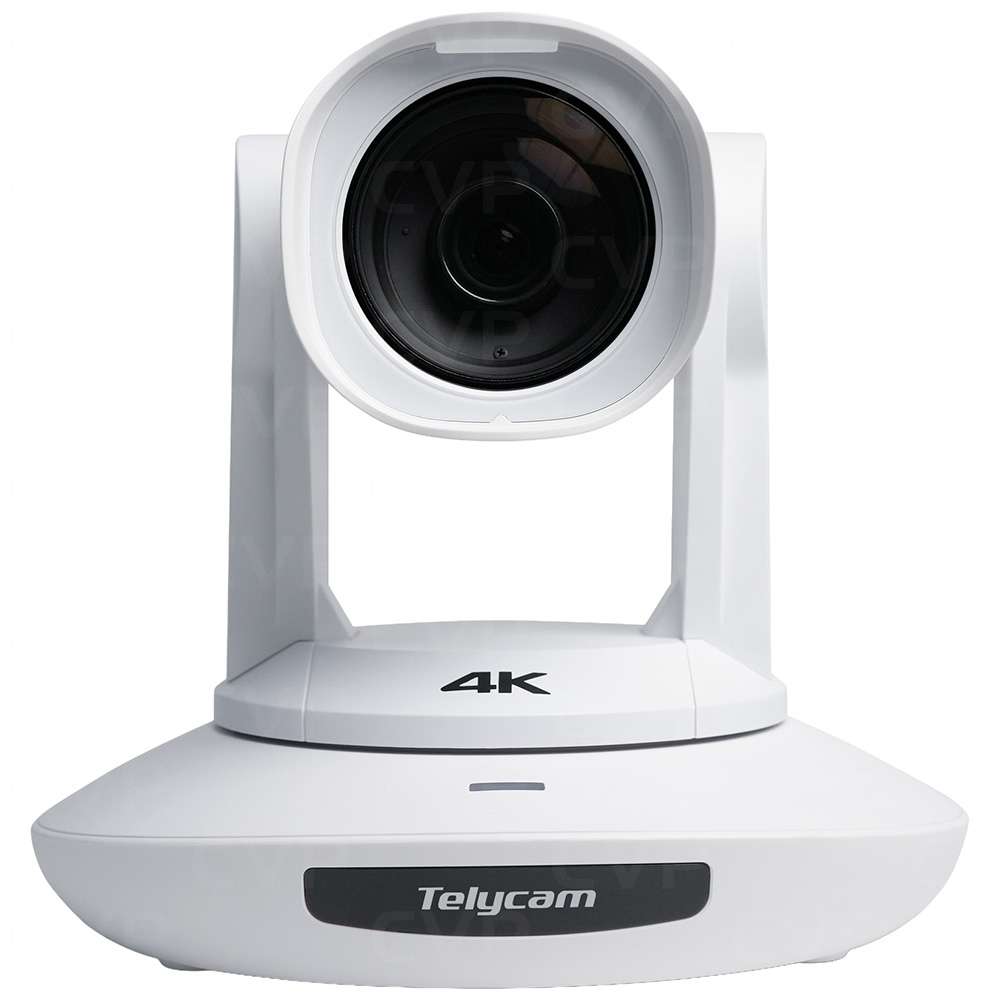

Telycam Vision+ 4KN 30X PTZ Camera

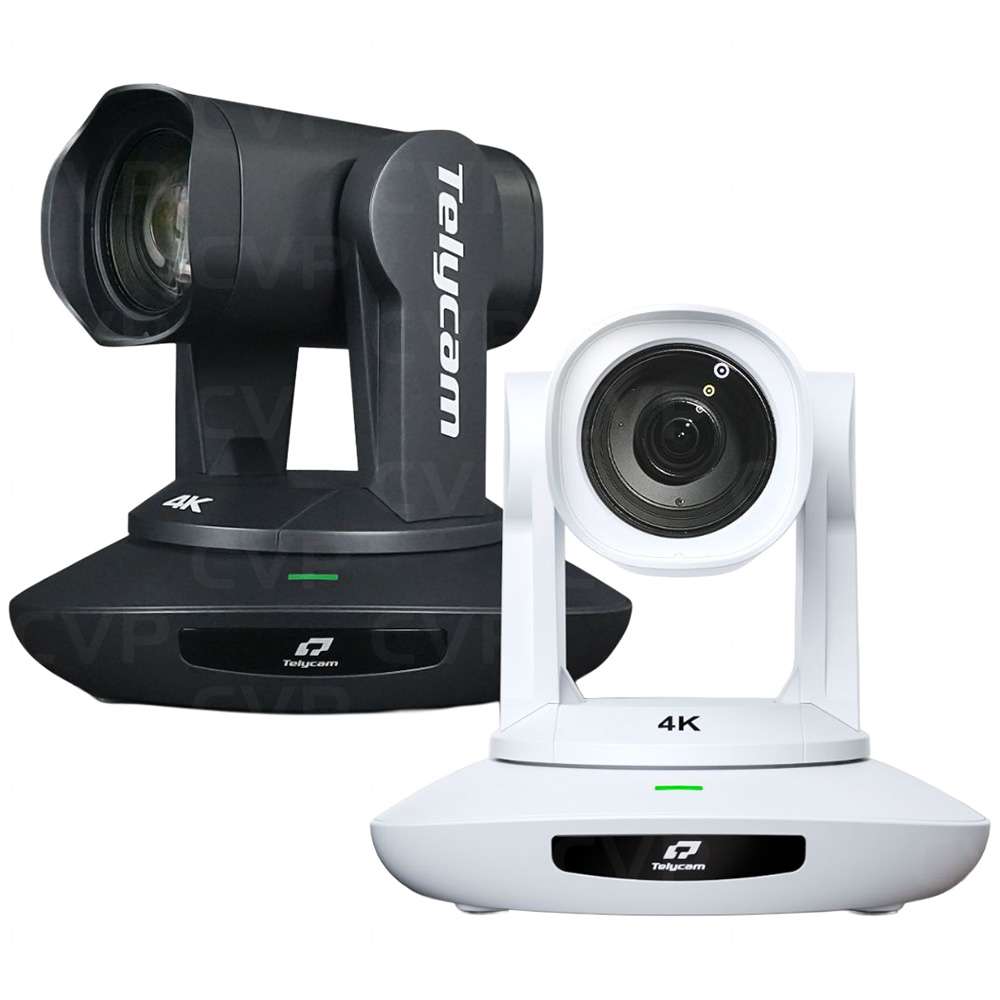

Telycam Vision+ 4KN 30X PTZ Camera - Available In Black or White
telycam-vision-4kn-30x / TEVISION+4KN30XBK
Availability
Shipping
Calculate Shipping
Finance
Build Your Kit
Add accessories to your kit to create a complete solution.
- Video Resolution
- 3840 x 2160
- Focal Length
- 6.25-112.5mm
- Max Aperture
- F1.58
- Lens Zoom
- 20x Optical Zoom
- Video Outputs
- HDMI, SDI
The Telycam Vision+ 4KN 30X PTZ Camera is a professional camera designed for high-quality live streaming and video production. It supports 4K resolution at 60 frames per second and features AI-powered auto-tracking for dynamic footage. The camera offers 12X, 20X, and 30X optical zoom options, with advanced PTZ mechanical design for smooth movements.
The Vision+ 4KN has multiple connectivity options including NDI®HX3, HDMI2.0, SDI, and USB2.0, allowing for simultaneous output of 4K UHD and 1080p60 Full HD resolutions. It also integrates FreeD technology for immersive virtual productions and features tally lights for production cues. With SSDP integration for easy setup and Iris cloud connectivity, the Vision+ 4KN offers advanced features for professional broadcasting and video production.
About the Telycam Vision+ 4KN 30X PTZ Camera
4K PTZ camera with 30x zoom and auto-tracking
The Telycam Vision+ 4KN 30X is a professional PTZ camera designed for high-quality live streaming and video productions. With support for 4K resolution at 60 frames per second and AI-powered auto-tracking, it enables crisp and dynamic footage.
Telycam’s new Vision+ 4KN series of PTZ cameras features built-in auto-tracking, integration with the latest NDI® SDK, and the most advanced American image processing solution to output exceptionally sharp 4K60 images. With 12X, 20X and 30X optical zoom available, the Vision+ 4KN can fit seamlessly into any production scenario.
The Vision+ 4KN’s advanced PTZ mechanical design enables smooth and accurate pan, tilt, and zoom movements. Its flexible NDI®HX3, HDMI2.0, SDI and USB2.0 connectivity simultaneously output 4K UHD and 1080p60 Full HD resolutions, ideal for professional live streaming applications. Line in audio input can be combined and output simultaneously with video over NDI®HX3, HDMI2.0 and SDI.
4K UHD Resolution
Equipped with cutting-edge image processor, Vision+ 4KN outputs 4Kp60/59.94 video for clear, sharp, lifelike images even in low-light environments.
NDI®HX /3G-SDI/HDMI 2.0/USB-C Available
Vision+ 4KN supports NDI®HX and HDMI2.0 outputs at 4Kp60/59.94 simultaneously.
- 3G-SDI(Level A and B) outputs 1080p60/59.94
- USB-C output up to 4K30
- USB and NDI cannot output simultaneously
FreeD Integration Unlocks Immersive Virtual Productions
FreeD is a protocol that enables precise transmission of Pan, Tilt, Zoom, and Focus (PTZF) data directly from the camera to tracking system. Widely supported by most virtual set systems, FreeD makes virtual productions easier than ever. The Vision+ 4KN seamlessly integrates FreeD technology, empowering users to explore dynamic shooting angles and perspectives, ideal for versatile real-world and virtual-world applications. Vision+ 4KN’s broad compatibility with industry-leading virtual set systems like Brainstorm, Vizrt, Zero Density, Aximmetry, Unreal Engine, and VSet3D ensures a smooth workflow for all your virtual production needs.
Tally Lights for Effortless Production Cues
Tally light, a visible indicator typically in red LED, illuminates to signal when the camera is live and actively feeding its image output.
Vision+ 4KN features built-in tally lights that work with NDI. This intuitive feature receives signals directly from NDI, without the need for separate tally control systems. A bright LED illuminates to clearly indicate which camera is currently on-air (“Program”) and which is lined up for the next transition (“Preview”).
3.5mm Stereo Line-in
The Vision+ 4KN features a 3.5mm stereo line-in audio interface, allowing for direct connection of external audio sources. This ensures high-quality, synchronized audio alongside your video feed, enhancing overall production quality. The line-in supports various audio devices, providing flexibility and convenience for professional broadcasting and video production.
12X/20X/30X Optical Zoom
The Vision+ 4KN offers 12X, 20X, and 30x optical zoom options with FOVs of 80.5°, 61°, and 60.5° respectively. Its advanced focusing algorithm ensures rapid and accurate focus even during zoom or movement.
Seamless Camera Setup with SSDP
Setting up your Telycam PTZ camera has never been easier, thanks to SSDP integration. This feature streamlines the process of finding your camera’s IP address, especially under multi-camera streaming, eliminating the need for complicated searches or additional tools. Simply connect your camera with an Ethernet cable, ensuring it’s on the same local network with your computer.
Telycam + Iris: Take Your Camera to the Cloud
With Iris integrated, your Telycam Vision+ 4KN camera goes fully cloud-connected — accessible and controllable from any browser, anywhere. Connect in just two clicks to unlock remote PTZ control, AI auto-tracking, framing, and centralized management — all in one simple interface.
Native AI-Based Auto-Tracking
The Vision+ 4KN features AI-based auto-tracking, automatically following subjects to enhance ease of use and capture the moments flawlessly.
| SENSOR AND LENS. | |
| Sensor. | 1/1.8 inch, 9MP UHD CMOS sensor |
| Optical zoom. | 30x |
| Lens. | f=6.91~214.64mm, F1.35~F4.6 |
| Horizontal opening angle. | 63° (Wide)~2.1° (Tele) |
| Vertical opening angle. | 34.14°~1.12° |
| Diagonal opening angle. | 67.08°~2.27° |
| Minimum distance. | 1.5m |
| Signal-to-noise ratio. | ≥50dB |
| VIDEO FORMATS. | |
| HDMI 2.0. | |
| . | 3840x2160P60/59.94/50/30/29.97/25 |
| . | 1920x1080P60/59.94/50/30/29.97/25/24/23.98 |
| . | 1920x1080I60/59.94/50 |
| . | 1280x720P60/59.94/50/30/29.97/25 |
| NDI®HX3. | |
| Main stream. | 3840x2160P15~60; 1920x1080P15~60; 1280x720P15~60; 1024x576P15~60 |
| Sub stream. | 640x360P15~30 |
| 3G-SDI. | |
| . | 1920x1080P60/59.94/50/30/29.97/25/24/23.98 |
| . | 1920x1080I60/59.94/50 |
| . | 1280x720P60/59.94/50/30/29.97/25 |
| USB TYPE-C. | |
| NV12. | 1920x1080P5; 1280x720P15; 1024x576P25; 800x448P30 |
| YUYV. | 1920x1080P5; 1280x720P15; 1024x576P25; 800x448P30 |
| MJPG. | 3840x2160P30; 1920x1080P60; 1280x720P60; 1024x576P60; 800x448P60 |
| H264/H265. | 3840x2160P30; 1920x1080P60; 1280x720P60; 1024x576P60; 800x448P60 |
| IMAGE PARAMETERS. | |
| Noise reduction. | 2D & 3D |
| Minimum brightness. | 0.5 lux (50 IRE max AGC, 1/30, F1.8) |
| White balance. | Auto/Manual/ATW/Push/Indoor/Outdoor/Colour Temperature |
| Exposure. | Auto/Manual/Shutter Priority/Iris Priority/Brightness Priority |
| Anti-flicker. | OFF, 50Hz, 60Hz |
| Image flip. | Supported |
| Mirroring. | Supported |
| Focus. | Auto/Manual |
| Iris. | Auto/Manual |
| Electronic shutter. | Auto/Manual |
| IP STREAMING. | |
| Video encoding. | H.264/H.265 |
| Bitrate control. | Variable bitrate (VBR), Constant bitrate (CBR) |
| Bitrate range. | 1024Kbps~122800Kbps |
| Network port speed. | 1000M |
| Protocol. | NDI®HX3, SRT, HTTP, RTSP, RTMP, ONVIF, VISCA over IP (TCP & UDP), VISCA, PELCO P/D, SSDP, FreeD, NTP, RTP Multicast, WebRTC |
| PAN/TILT MOVEMENT. | |
| Preset. | Remote controller: 10; Serial port: 256; Accuracy: 0.1° |
| Pan rotation range. | -176°~+176° |
| Tilt rotation range. | -30°~+90° |
| Pan rotation speed. | 0.1°~80°/s |
| Tilt rotation speed. | 0.1°~60°/s |

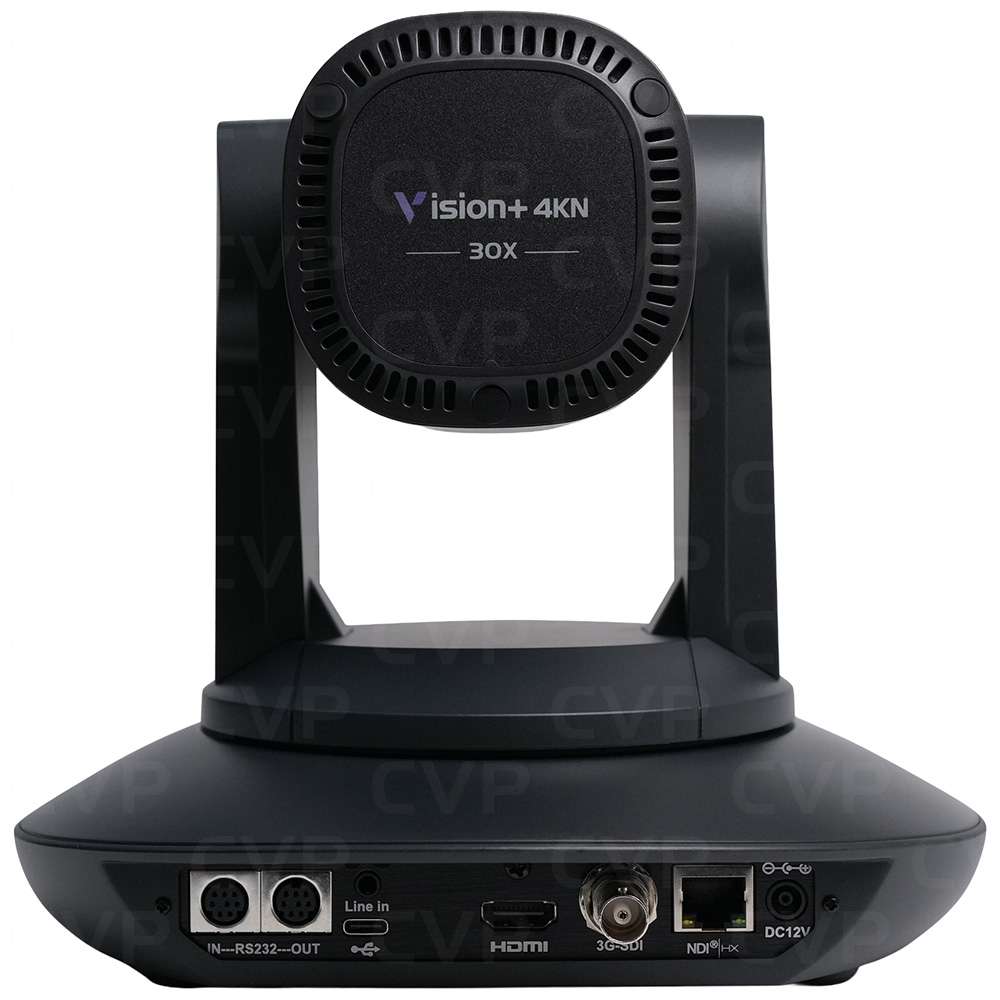

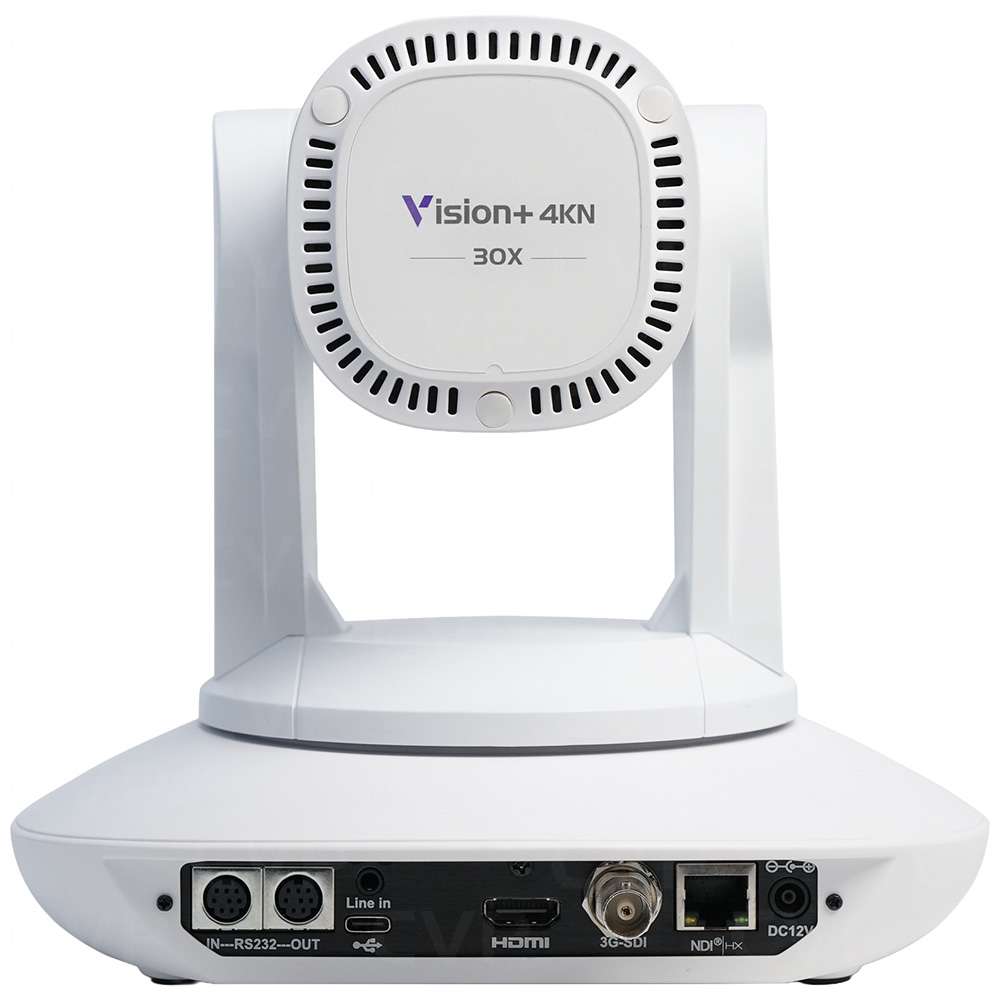

| I/O INTERFACE. | |
| Control port. | RS232 (RS485), NDI®HX3 |
| Video port. | NDI®HX3, HDMI 2.0, 3G-SDI, USB Type-C |
| Audio port. | Stereo 3.5mm linear inputs |
| Tally. | Supported |
| PoE+. | Supported |
| Daisy chain. | Supported |
| GENERAL. | |
| Input voltage. | DC12V, PoE+ (IEEE802.3at) |
| Tolerated operating temperature range. | -10℃~50℃ |
| Tolerated operating humidity. | ≤80% |
| Dimensions (L×W×H). | 220mm × 190mm × 193.5mm |
| Net weight. | 1.9kg (4.2lbs) |

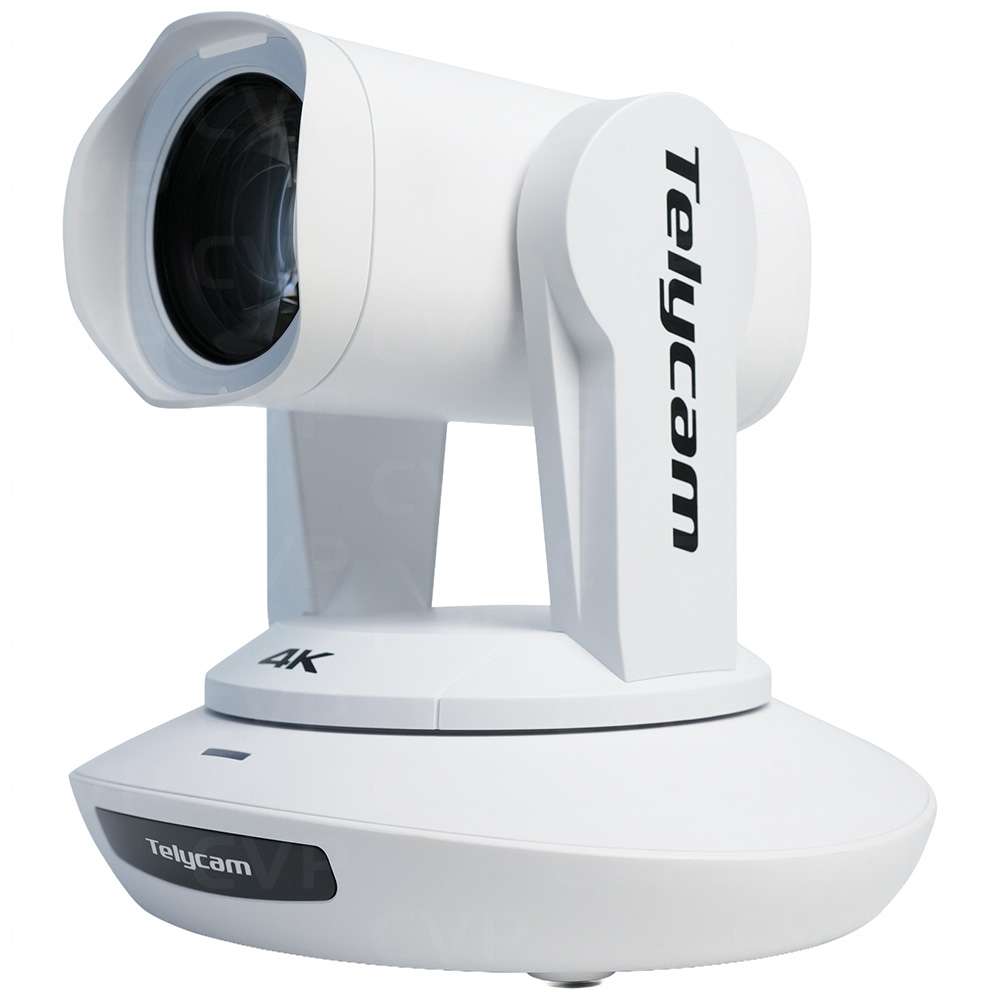

| Colour. | Available in black and white |
- 4K
- 1/1.8 Zoll 9MP UHD CMOS Sensor
- 30x optical zoom
- 3G-SDI, HDMI, USB
- NDI®HX3
- SSDP for convenient network setup
- Auto-Tracking
Telycam Vision+ 4KN 30X PTZ Camera knowledge hub
Real answers from CVP's technical team, based on the questions customers ask us.
By the community, for the community
Product kits featuring the Telycam Vision+ 4KN 30X PTZ Camera.
You might be interested in

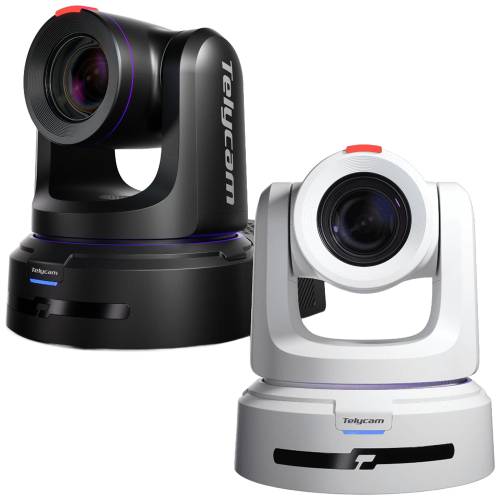

Telycam Explore 500
- Video Resolution: 3840 x 2160
- Focal Length: 9.8-186mm
- Max Aperture: F2.8
- Lens Zoom: 20x Optical Zoom
Usually dispatched in under 2 weeks

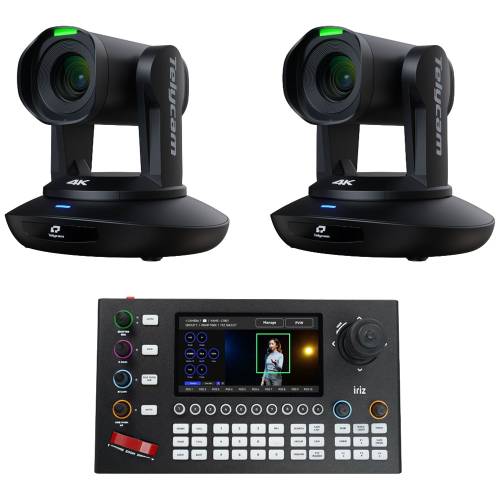

Telycam Vision4K 20x Production Kit
- Video Resolution: 3840 x 2160
- Focal Length: 6.25-112.5mm
- Max Aperture: F1.5
- Lens Zoom: 20x Optical Zoom
Usually dispatched in under 2 weeks
Telycam Explore 300
- Video Resolution: 3840 x 2160
- Focal Length: 9.8-186mm
- Max Aperture: F2.8
- Lens Zoom: 20x Optical Zoom
Usually dispatched in under 2 weeks
Telycam Explore 100
- Video Resolution: 3840 x 2160
- Focal Length: 30x Optical Zoom
- Max Aperture: F1.4
- Lens Zoom: 30x Optical Zoom
Usually dispatched in under 2 weeks

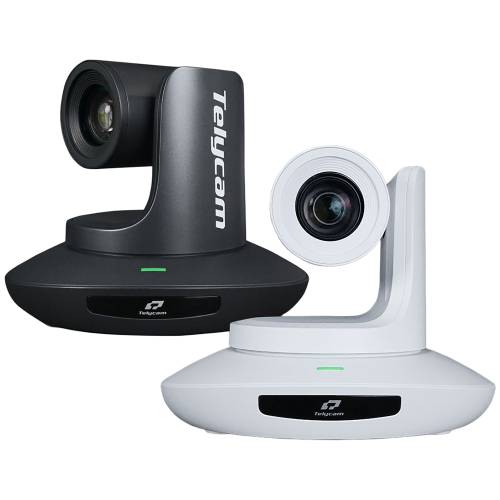

Telycam Drive+ SE SDI
- Video Resolution: 1920 x 1080
- Focal Length: 4.9-98mm
- Max Aperture: F1.5
- Outputs: SDI
Usually dispatched in under 2 weeks
Telycam Drive+ SE HDMI
- Video Resolution: 1920 x 1080
- Focal Length: 4.9-98mm
- Max Aperture: F1.5
- Outputs: HDMI
Usually dispatched in under 2 weeks

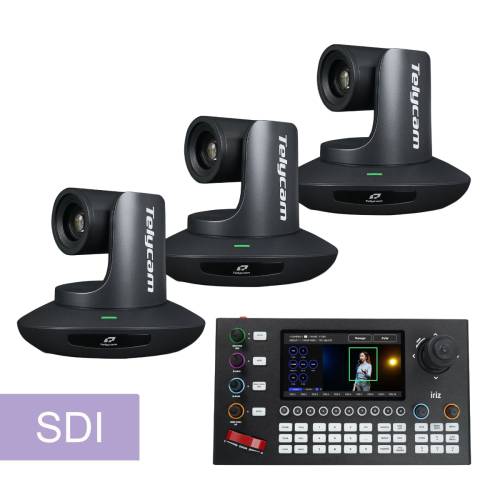

Telycam Drive Production Kit SDI
- Video Resolution: 1920 x 1080
- Focal Length: 4.9-98mm
- Max Aperture: F1.5
- Lens Zoom: 20x Optical Zoom
Usually dispatched in under 2 weeks

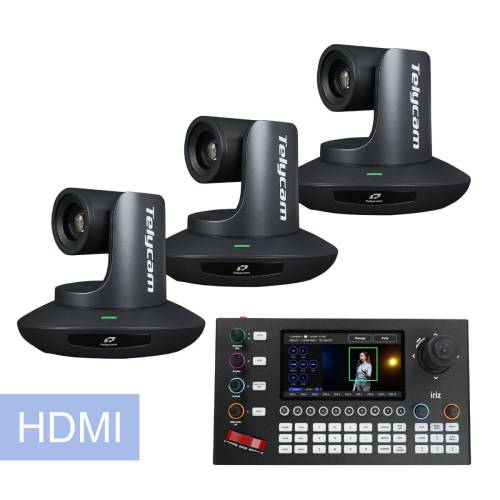

Telycam Drive Production Kit HDMI
